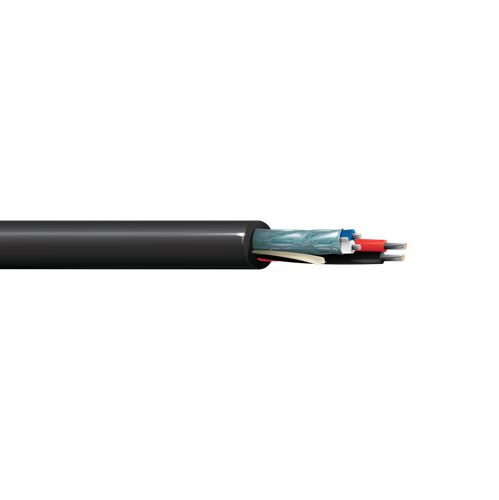

Description:
• 22 AWG stranded (7x30) TC conductors, plenum, foam FEP insulation (data), STP w/Beldfoil®, 18 AWG (16x30) TC conductors unshielded, polypropylene binder tape, Flamarrest® insulation (power), Flamarrest® jacket.

Insulation:
• Trade Name: Flamarrest® (18 AWG)
• Materials: FFEP - Foam Fluorinated Ethylene Propylene (22 AWG) & LS PVC - Low Smoke Polyvinyl Chloride (18 AWG)
• Wall Thickness (in.): 0.025 (22 AWG) & 0.011 (18 AWG)

Inner Shield:
• Layer #: 22 AWG Pair
• Trade Name: Beldfoil®
• Type: Tape
• Material: Aluminum Foil-Polyester Tape

Inner Shield Drain Wire AWG:
• AWG: 24
• Stranding: 7x32
• Conductor Material: Tinned Copper

Outer Jacket:
• Trade Name: Flamarrest®
• Material: LS PVC - Low Smoke Polyvinyl Chloridee

Mechnical Characteristics (Overall):
• Operating Temperature Range: -20°C To +60°C
• Non-UL Temperature Rating: 75°C
• Bulk Cable Weight: 31 lbs/1000 ft.
• Max. Recommended Pulling Tension: 59.800 lbs.
• Min. Bend Radius/Minor Axis: 2.500 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards & Environmental Programs:
• NEC/(UL) Specification: CMP
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire & Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 100 (22 AWG)
• Nom. Inductance: 0.232 (22 AWG) & 0.168 (18 AWG)
• Nom. Capacitance Conductor to Conductor (pF/ft): 14 (22 AWG) & 29 (18 AWG)
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/ft): 38 (22 AWG)
• Nom. Conductor DCR @ 20°C (Ohm/1000 ft): 16.3 (22 AWG) & 6.9 (18 AWG)
• Max.Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 3.8 Amps per conductor @ 25°C (22 AWG); 7.2 Amps per conductor @ 25°C (18 AWG)

Flame Test:
• UL Flame Test: NFPA 262
• CSA Flame Test: FT6

Plenum/Non-Plenum:
• Plenum (Y/N): Yes
• Plenum Number: 1502R

Benefits And Features:
• Belden offers more than 25 variations for DMX / RS-485 applications
• Many of Belden's lighting cables are designed for industrial standards, and their rugged and resistant cable options are suitable for many indoor and outdoor lighting challenges
