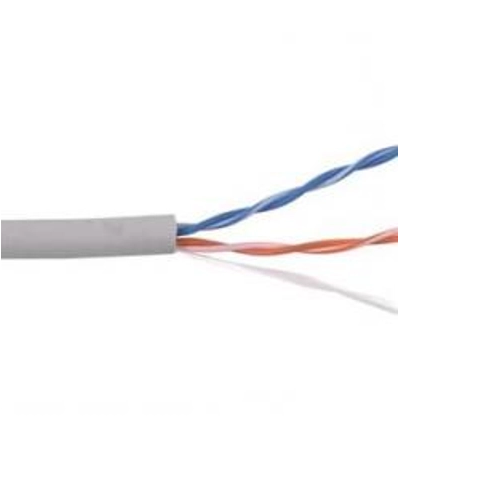

Belden 1588A Cable 24 AWG 2 Pairs Stage Lighting 5e Nonbonded Pair Cable

Description:
• CAT5e (200MHz), 2-Pair, U/UTP-Unshielded, Riser-CMR, Premise Horizontal Cable, 24 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Ripcord, PVC Jacket.

Insulation:
• Material: PO - Polyolefin

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (in.): 0.183
• Ripcord: Yes

Usage (Overall):
• Applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422

Mechnical Characteristics (Overall):
• Storage Temperature Range: -20°C To +75°C
• Installation Temperature Range: 0°C To +60°C
• Operating Temperature Range: -20°C To +75°C
• Bulk Cable Weight: 15 lbs/1000 ft.
• Max. Recommended Pulling Tension: 13 lbs.
• Min. Bend Radius/Minor Axis: 1 in.
• Min. Bend/Installation: 1.800 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards & Environmental Programs:
• NEC/(UL) Specification: CMR
• EU Directive 2011/65/EU (ROHS II): CMR
• EU Directive 2000/53/EC (ELV): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire & Cable): Yes
• MII Order #39 (China RoHS): Yes
• Telecommunications Standards: Category 5e - TIA 568.C.2
• Other Specification: NEMA WC-63.1 Category 5e, UL verified to Category 5e

Electrical Characteristics (Overall):
• Nom. Mutual Capacitance (pF/ft): 15
• Maximum Capacitance Unbalance (pF/100 m): 330
• Nominal Velocity of Propagation: 70
• Maximum Delay (ns/100 m): 538 @ 100MHz
• Max. Delay Skew (ns/100 m): 45
• Maximum Conductor DCR @ 20°C (Ohm/100 m): 9.38
• Max. Operating Voltage - UL: 300V RMS
• Maximum DCR Unbalanced @ 20°C (%): 5

Flame Test:
• UL Flame Test: UL1685 Vertical Riser
• C(UL) Flame Test: FT4
• IEEE Flame Test: 1202

Suitability:
• Suitability - Indoor: Yes
• Suitability - Outdoor: No
• Suitability - Aerial: No
• Suitability - Burial: No
• Sunlight Resistance: No

Plenum/Non-Plenum:
• Plenum (Y/N): No
• Plenum Number: 1590A

Benefits And Features:
• Belden offers more than 25 variations for DMX / RS-485 applications
• Many of Belden's lighting cables are designed for industrial standards, and their rugged and resistant cable options are suitable for many indoor and outdoor lighting challenges
