Description:

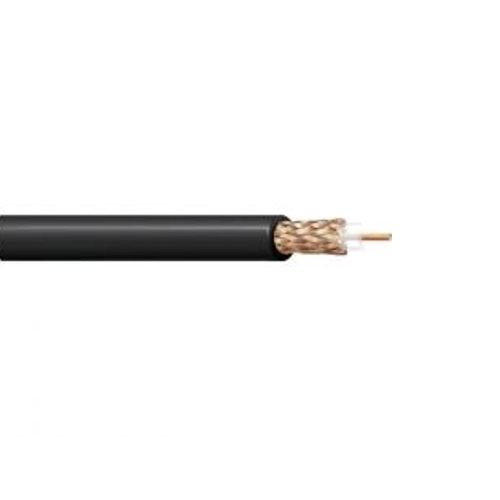

• 23 AWG Solid .023" bare copper or bare copper-covered steel conductor, polyethylene insulation, bare copper braid shield (95% cverage), PVC jacket.

Insulation:
• Material: PE - Polyethylene
• Wall Thickness (in.): 0.146

Outer Jacket:
• Material: PVC - Polyvinyl Chloride

Mechnical Characteristics (Overall):
• Operating Temperature Range: -40°C To +75°C
• UL Temperature Rating: 75°C
• Non-UL Temperature Rating: 75°C
• Bulk Cable Weight: 37 lbs/1000 ft.
• Max. Recommended Pulling Tension: 62 lbs.
• Min. Bend Radius/Minor Axis: 2.500 in

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards & Environmental Programs:
• NEC/(UL) Specification: CM
• CEC/C(UL) Specification: CM
• AWM Specification: UL Style 1354)
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire & Cable): Yes
• MII Order #39 (China RoHS): Yes
• RG Type: 59/U

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 75
• Nom. Inductance (μH/ft): 0.131
• Nom. Capacitance Conductor to Shield (pF/ft): 20.5
• Nominal Velocity of Propagation VP (%): 66
• Nominal Delay (ns/ft): 1.54
• Nom. Conductor DCR @ 20°C (Ohm/1000 ft): 49.0
• Nom. Outer Shield DCR @ 20°C (Ohm/1000 ft): 2.6
• Max.Operating Voltage - UL: 300 V RMS, 30 V RMS
• Max. Operating Voltage - Non-UL: 1700V RMS

Flame Test:
• UL Flame Test: UL1685 UL Loading

Suitability:
• Suitability - Indoor: Yes

Plenum/Non-Plenum:
• Plenum (Y/N): No
• Plenum Number: 88241, 82241

Benefits And Features:
• Belden offers more than 25 variations for DMX / RS-485 applications
• Many of Belden's lighting cables are designed for industrial standards, and their rugged and resistant cable options are suitable for many indoor and outdoor lighting challenges
