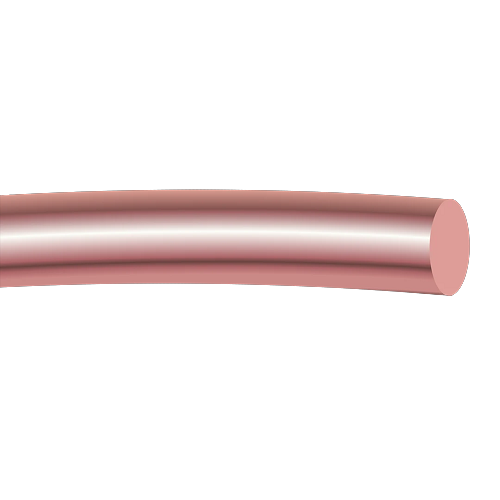

6 AWG Solid Bare Copper Wire

6 AWG Solid Bare Copper Wire

Regular price $2.00 $0.84 Sale /per Foot

BCW 6 Gauge - COPPER6-BCW | Nassau National Cable

Technical Specifications:
Name: BCW 6 Gauge
Size AWG: 6
Stranding (Al/Stl): --
Stranding Class: --
Diameter Single Phase Conductor (Mils): --
Diameter Complete Cable (O.D.) (Mils): 162
Weight Per 1000ft Total (Lbs.): 79.4
Allowable Ampacity 90C (Amps): 125
Circular Mil Area (cmils): 26240
Hard-Drawn Rated Strength (lbs.): 1280.0
Medium-Drawn Rated Strength (lbs.): --
Omni Cable Part # Q10601

Applications:
Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications. Stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.

Specifications:
Bare copper wire and cable meets or exceeds the following ASTM specifications:

  • B-1 Hard-Drawn Copper Wire.
  • B-2 Medium-Hard Copper Wire.
  • B-3 Soft or Annealed Copper Wire.
  • B-787 19 Wire Combination Unilay-Stranded Soft copper wire.
  • B-8 Concentric-Lay-Stranded Hard, Medium-Hard or Soft Copper Conductor.

Construction:
Bare copper, solid or stranded. Available in tempers hard, medium-hard, or soft. Stranded conductors are concentrically stranded in hard and medium-hard tempers and are Combination Unilay stranded in the soft-drawn temper.
