Description:

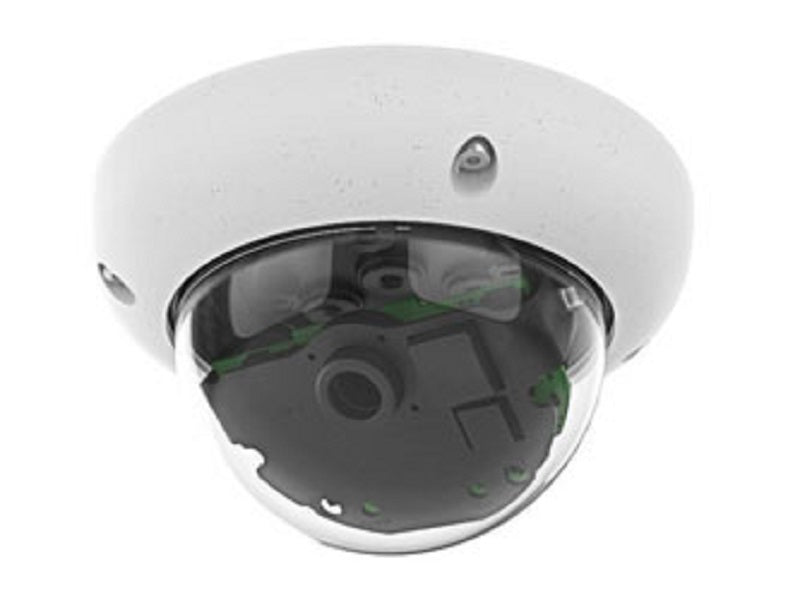

D26B Body 6MP (Day).

D26 camera module (body) with 6 Megapixel Moonlight Sensor, color (day) • ONVIF-compliant Mx6 system platform (2nd generation) with H.264, MxPEG+ and M-JPEG • Lens to be ordered individually (B036 to B237) • Max. image size: 6MP (3072 x 2048) • IP66/IK10, -40 to 50°C (-40 to 122°F) • Internal DVR: 4 GB microSD • Temperature sensor, MxActivitySensor, MxAnalytics, shock detector • Ethernet cable 0.5 m/1.6 ft • Lens cover with sealing ring (polycarbonate, 1.5 mm) • Interfaces: Ethernet 10/100 (RJ45), MxBus, USB; I/O and RS232 via MX-232-IO-Box (MX-OPT-RS1-EXT).

Technical Data:

Ambient Temperature (°C):
-40...+50 °C (-40 ... 122 °F; Operational temperature)
Cold start at -30 °C (-22 °F)

IP Class:
IP66

IK Class:
IK10 (with and without Vandlsm Set)

Certificates:

• EN55022:2010;
• EN55024:2010;
• EN50121-4:2006
• EN61000-6-1:2007;
• EN 61000-6-2:2005
• EN61000-6-3:2007+A1:2011
• EN61000-6-4:2007+A1:2011
• AS/ NZS CISPR22:2009+A1:2010
• CFR47 FCC part15B

MTBF (h):
80,000

PIR:
No

DVR:

• Camera-internal via microSD card
• External on USB device
• External on NAS
• Full image recording regardless of live image zoom
• MxFFS
• Pre-alarm and post-alarm images
• DVR monitoring with error notification

Video Phone: with Accessory
