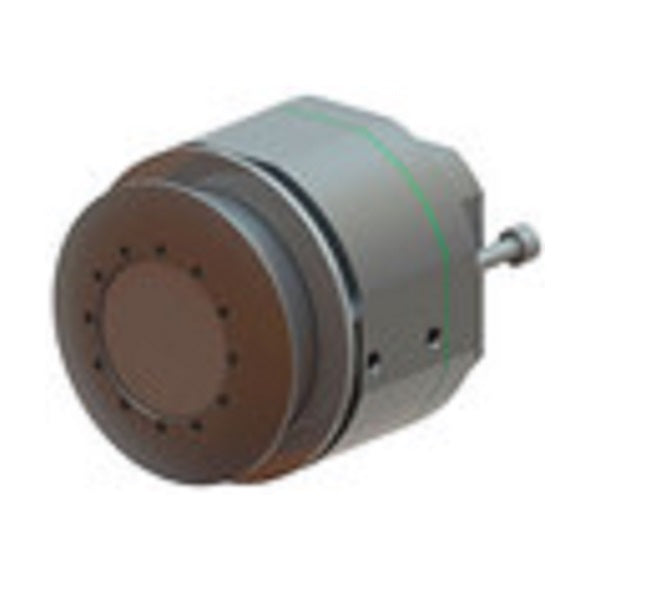

Mobotix MX-O-SMA-TS-T119 Thermal Sensor Module For S16/S15 50 mK B119 (25°)

Mobotix MX-O-SMA-TS-T119 Thermal Sensor Module For S16/S15 50 mK B119 (25°)

Select gauge from drop-down menu for prices:

Mobotix MX-O-SMA-TS-T119 Thermal Sensor Module For S16/S15 50 mK B119 (25°)

Regular price $5,183.39 $3,987.22 Sale /per Foot

Description:

Thermal Sensor Module For S16/S15, 50 mK, B119 (25°).

Suitable for: S16/S15 to be ordered individually) • Highly sensitive thermal image sensor: NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second • Germanium Lens (included): B119, horizontal/vertical image angle 25°/19° • Image size: 336 x 252 pixels (can be scaled up to 6MP) • IP66, -30 to 60°C (-22 to 140°F) • Housing: black anodized aluminum • Camera connection via MOBOTIX sensor cable (max. 3 m/9.8 ft, to be ordered individually).

Technical Data:

  • Compatibility: S15D, S16
  • LensType: Germanium lens; can be optionally equipped with a second optical 6MP sensor module (day/color or night/black and white to be ordered separately for easy self-assembly)
  • Image Angle horizontal: 25°
  • Image Angle vertical: 19°
  • Focal Length: equivalent to B119 Optics
  • Max. Frame Rate: 9 frames per second (fps) for thermal images, Thermal Overlay and dual images (thermal & optical)
  • Max. Image Size: Image size: 336 x 252 pixels (can be scaled up to 6MP)
  • Camera Optics: Thermal
  • Light Sensitivity: Typ. 50 mK, < 79 mK (50 mK is equal to temperature changes of 0,05°C), pixel pitch 0,017mm (17µm) at 336 x 256 pixel
