Description:

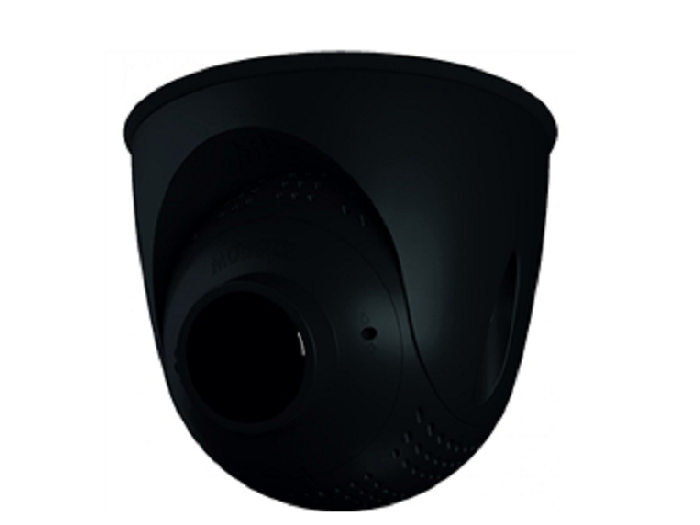

PTMount-Thermal TR For S16/S15, 50 mK, B237 (17°), Black

PTMount-Thermal TR for the S16/S15 • Thermal radiometry (TR): calibrated thermal sensor for temperature events from -40 to 550°C (-40 to 1022°F) • NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second • Germanium Lens (2 m/6.6 ft, included): B237 equivalent, horizontal/vertical image angle 17°/13° • Image size: 336 x 252 pixels (can be scaled up to 6MP) • IP66, -30 to 60°C (-22 to 140°F) • Camera connection via MOBOTIX sensor cable (2 m/6.6 ft, included) • Color: Black

Technical Data:

• Compatibility: S15D, S16
• LensType: Germanium lens; can be optionally equipped with a second optical 6MP sensor module (day/color or night/black and white to be ordered separately for easy self-assembly)
• Image Angle horizontal: 17°
• Image Angle vertical: 13°
• Focal Length: equivalent to B237 Optics
• Max. Frame Rate: 9 frames per second (fps) for thermal images, Thermal Overlay and dual images (thermal & optical)
• Max. Image Size: Image size: 336 x 252 pixels (can be scaled up to 6MP)
• Camera Optics: Thermal
• Light Sensitivity: Typ. 50 mK, < 79 mK (50 mK is equal to temperature changes of 0,05°C), pixel pitch 0,017mm (17µm) at 336 x 256 pixel

Special Instructions:

• Instructions: Thermal cameras are subject to special export regulations
